1. Description:

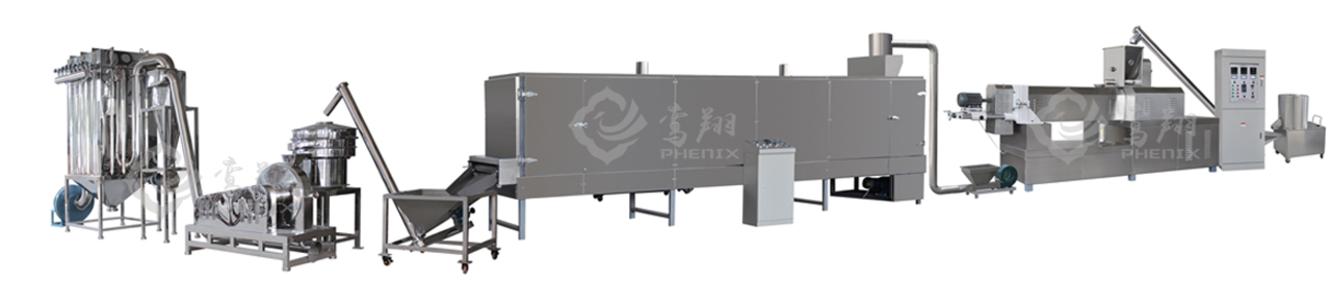

Baby food machine is used to produce infant baby food and some other instant flour products. The raw material is put in the mixer then mixed ingredients are feed into extruder feeder. The extruder is fitted with: special cylindrical holding silo; vibratory doser with hopper to feed the extruding screw; extrusion mechanism and cutting; independent electric panel.
After the extrusion the product is conveyed till the continuous rotary drier through a pneumatic conveyor. The continuous rotary drier has a heat ex-changer with gas burner that allows a better heating of the product and it is economically viable owing the low cost of electric power. Case the client prefers we have the electric drier also.
The dried product is taken by the hoister till the mill's feeding silo where the product is processed through the friction of the hammers and thus obtaining the flour at the desired granulation. With a blender, the pre-mix of vitamins, mineral and milk will be added to make fortified blender foods.

2. Raw materials: adopts  cereals flour (corn, wheat, rice, oat, soy, etc)

3. Products: baby food, FBF, CSB and samaposha etc

4. Capacity: 150kg/h, 240kg/h, 500kg/h

5. Flow chart: Mixing system---Extrusion system---- -Drying system----Milling system---Blending----Packing system

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

7. Machines Materials:


Machine Material: Stainless Steel #304, thickness:1.2mm
Main Motor: Siemens China brand
Main Electric elements: Siemens or CHNT brand
Inverter: Delta brand


8. Technical Parameters

Model          Installed power         Real power          Output                           Dimension
PX65                81.5kw                     53kw                 100-150kg/h            21000x1200x2200mm
PX70                 115kw                     76kw                 200-240kg/h            23000x1500x2200mm
PX85                 181kw                     117kw               400-500kg/h            28000x3500x4300mm
