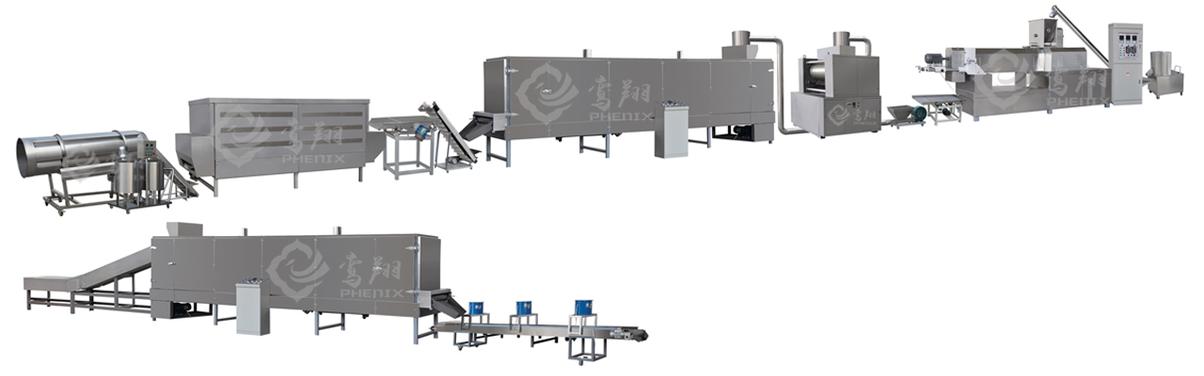

Corn flakes production line

Want to know more about corn flakes  production business?

1. Description:


Core flakes machine can produce breakfast cereal which is one kind of nutritional convenient food which is produced by this process line, using grist as basic material, with different shapes, such as, granule, flake, animal, etc. One outstanding characteristic of the breakfast cereal is that it contains abundant compound carbohydrates and dietary fibre, strengthens lots of microelements, such as vitamin and mineral, and also can be added with cocoa and sugar, like honey and maltose. It can be drunk directly after mixed into coffee, milk, yoghourt or functional drink. Children can eat breakfast cereal as sweet crispy snack.
2. Raw materials: adopts corn flour as raw material


3. Products:This line can be used to produce corn flakes, breakfast cereals, different kinds of snacks by adjusting the moulds from extrude.


4. Capacity: 150kg/h, 300kg/h.


5. Flow chart: Mixing system---Extrusion system---Flaking system---Drying system---Sugar Spraying---system ---Drying system---- Packing system


6. Voltage in China: Three phases: 380V/50Hz, Single phase:  220V/50Hz, we can make it according to customers' Local voltage according to different countries.


7. Machines Materials:Stainless Steel #304, thickness:1.2mm;Main Motor: Siemens China brand;Main Electric elements: Siemens or CHNT brand;Inverter: Delta brand


8. Technical Parameters

Model      Installed power        Real power            Output                          Dimension
PX65                140kw                   90kw                100-150kg/h            39000x1200x2200mm
PX70                160kw                  120kw               200-300kg/h            41000x1500x2200mm
