1. Description:

◆. use corn powder as main material
◆. extrude under high temperature and pressure by double-screw extruder
◆. punch into triangle chips (also other shapes)
◆. dry to take off certain water content
◆. fry with vegetable oil
◆. flavor with different seasonings

2. Raw materials: adopts corn flour, rice flour,  vegetable oil, salt etc. as raw materials.

3. Products: This line can be used to produce Doritos chips, snacks, cereals by adjusting the moulds from extruder;

4. Capacity: 150kg/h, 240kg/h

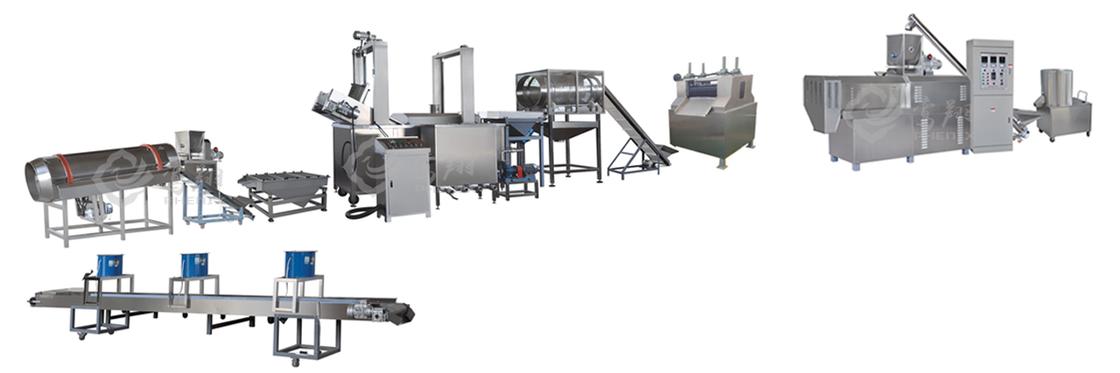

5. Flow chart:Mixing system---Extrusion system---Shaping system---Frying system----Flavoring system---Packing system

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

7. Machines Materials: Stainless Steel #304, thickness:1.2mm;Main Motor: Siemens China brand ;Main Electric elements: Siemens or CHNT brand;Inverter: Delta brand

8. Technical Parameters

Model        Installed power        Real power         Output                       Dimension

PX65               119kw                     75kw            100-150kg/h            22000x1200x2500mm

PX70               120kw                    82kw             200-240kg/h            24000x1200x2500mm
