​​​1. Description:
Main Application :
Comprised of main frame, auxiliary machine and electrical control cabinet, this machine has such performances as winnowing, screen or mesh free, uniform size and continuous operation, and has reached the international advanced level, thus being widely used for material crushing in pharmaceutical, chemical and foodstuff trades etc..
Working Principle:
The material is fed into the crushing chamber by a screw conveyor, cut and crushed by high speed rotating blade and conveyed to the cyclone separator by means of negative pressure air conveyance before being discharged by bag type collector, and the dust is filtered and recovered by dust collector through filter barrel Having no dust flying during production, it can improve utilization rate of the material and reduce the cost of enterprise.
2. Products:  This line can be used to mill  pharmaceutics, chemical and foodstuff etc.
3. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
4. Machines Materials:
Machine Material: Stainless Steel #304, thickness:1.2mm
Main Motor: Siemens China brand
Main Electric elements: Siemens or CHNT brand
5. Technical Parameters

​Model      Production Capacity      Feeding Size      Output size      Total power      Main Speed      overall dimension        weight
WFJ-300           10-100kg/h                      ≤10mm        60-450mesh          13.5kw            5800r/min       4200*1200*2700mm      1000kg
WFJ-450           50-250kg/h                      ≤10mm        60-450mesh          19.3kw            5200r/min       4300*1350*2700mm      1500kg
WFJ-520           80-500kg/h                      ≤10mm        60-450mesh          39.05kw          5000r/min       7920*1480*3290mm      2500kg
WFJ-630           200-1500kg/h                 ≤10mm        60-450mesh           75.3kw           4500r/min        9500*1800*3730mm      3200kg

​

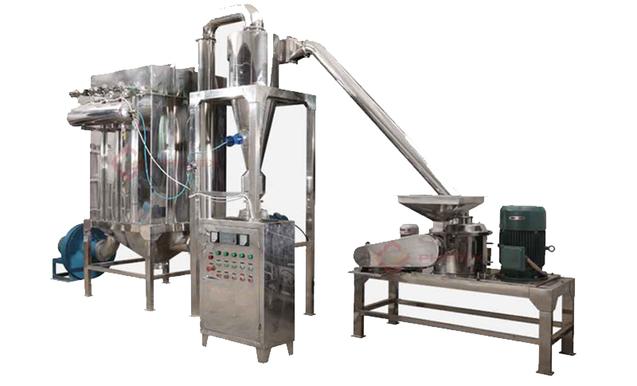

Fine Powder Pulverizer
