​​​1. Description:

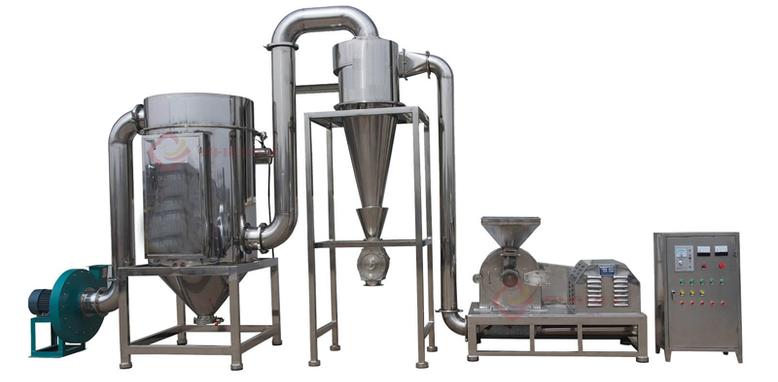

Our  High Effective Pulverizer adapts the vertical low raw material discharging equipment. High Effective Pulverizer makes some raw materials with poor fluidity after broken can be dischanged unblocked and no the phenomenon of accumulated powder.

Its principle of work is as follows:when raw material entered into the crushing chamber.  High Effective Pulverizer is broken under the impacting of movable and fixed fluted discs that are rotated in high speed and then becomes the needed raw material through screen.

​
2. Products: This line can be used to mill sugar, spice etc.

3. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
4. Machines Materials:
Machine Material: Stainless Steel #304, thickness:1.2mm
Main Motor: Siemens China brand
Main Electric elements: Siemens or CHNT brand

5. Technical Parameters

​Model                                                    GF20B                           GF30B                             GF40B
Capacity                                           60-150 kg/h                  100-300 kg/h                 160-800 kg/h
Spindle Rotating Speed                  4500 rpm                       3800 rpm                        3400 rpm
Powder Fineness                         20-120mesh                  20-120 mesh                  20-120 mesh
Feeding Size                                      <6mm                             < 10 mm                          <12 mm
Crusher Motor                                    4 kw                                 5.5 kw                              7.5 kw
Overall Dimensions                 1100*600*1650mm       1200*650*1650mm       1350*700*1700mm
Net Weight                                          250kg                               320kg                                 550kg​​
