1. Description:

Frying pellets line is produced by single-screw extruder through extruding cooking; the pellet can be different shapes like shell, spiral, square tube, circle tube, and so on. After drying, the pellet needs frying to get expanded.

2. Raw Materials: adopts potato starch, corn starch, cassava starch, wheat flour, corn flour etc as raw materials

3. Products: This line can be used to produce different shapes of pellets by adjusting the moulds from extruder

4. Capacity: 100kg/h

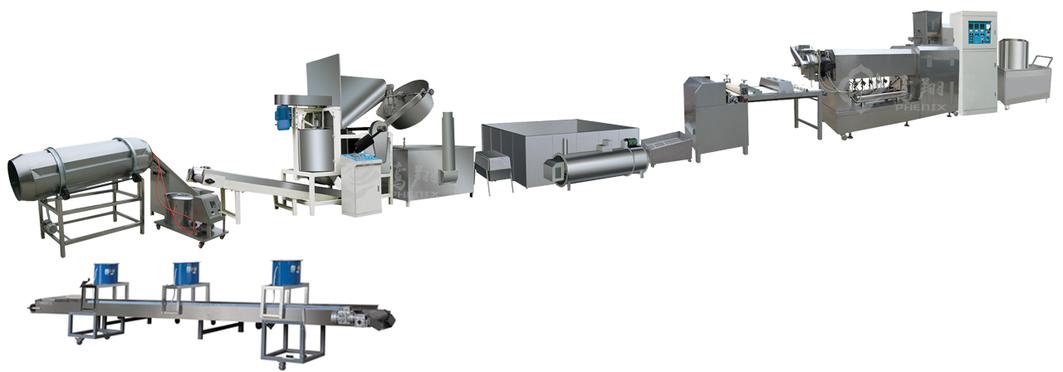

5. Flow chart: Mixing system---Extrusion system----Cutting system---Drying system---Frying system---Flavoring System --Packing system

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

7. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

8. Technical Parameters:

Model       Installed power       Real power         Output                Dimension

PX100             100kw                   70kw                100kg/h          27000x2000x2000mm

Want to know more about frying pellet  production business?

Frying Pellet Production Line
