Hamburger Patty Processing Line

1. Description:
 Automatic Multi Forming machine PX600-Ⅳ (automatic hambuger patty and nuggets forming machine) can automatically perform various procedures such as meat filling, forming and outputting, and combine a fully automatic prepared food line when connecting with the batter, preduster, fryer, cooker, instant freezer and packing machine. It adopts the method of four-screw feeding system, greatly reduces the cutting of the material, and has better features of high production capacity and stable quality.  Easy and convenient replacement of food and the accurate portion control realize the cost control of the production.
 Widely handles in the forming procedure of meat, poultry, fish, shrimp and the potato, tuber crops. And it can be applied in the fields of all kind of minced/sliced products for premier meat texture taste.
Remark: To meet the needs of the production, parts, pallet, special cleaning cart, products with filling can be customized.
 In addition, the machine can produce high quality diversified PET food.

2. Flow chart:

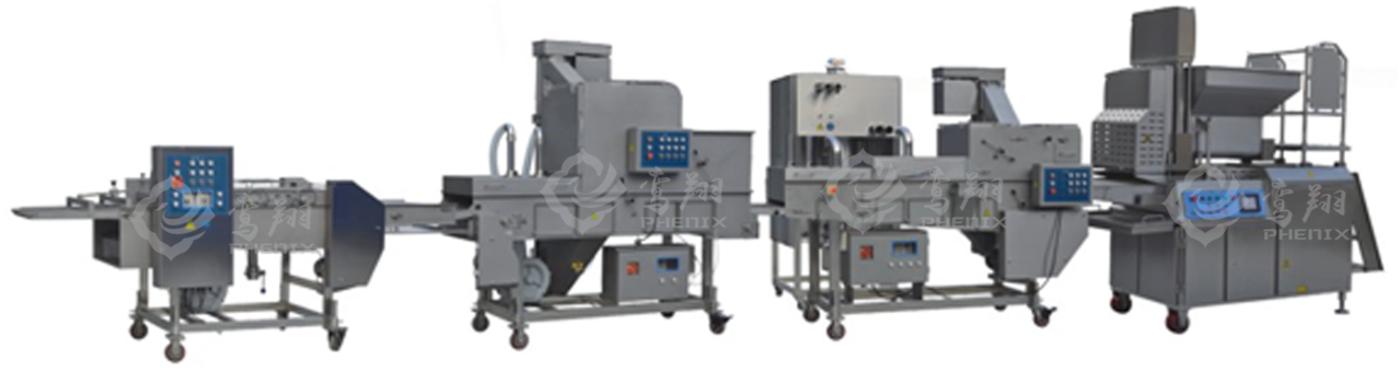

Molding - sizing - powdering - breadcrumb production line


3. Voltage in China:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries


4. Machines Materials:
All the machines are made by stainless steel


5. Technical Parameters
Model                                                             PX600-IV
Width of the belt                                         600mm
Air / water pressure                                   6Bar/  2Bar
Power                                                           15.12kW
Production capacity                         About 500-1000kg/hour
Strokes                                                30~70 strokes per minute
The thickness of product                         6~40mm
Weight Error                                                 ≤1%
The maximum diameter                  150mm(for round burger)
Filling pressure                                     3~15Mpa adjustable
Overall dimension                                3170×1176×2430mm
