1. Description:
◆.The main extruder adopts frequency speed controlling with high automation and stable per-formation.
◆.The screws are made of the alloy steel and special craft,durable usage,high pressure,the screw life is longer.Adopting the building block structure and combining willingly according to the different demand.
◆.The forced lubrication system,so that it can guarantee the equipment transmission life is longer.
◆.Auto-temperature control system, make the temperature controlling more direct viewing and the parameter more precise.
◆.Self-cleaning ,when stopping ,it can be cleaned without desassembling.
◆.According to different screw design rate to full different technology request.
◆.This equipment has the wide material,multi-shape products and flexible collocations.We can produce the different products according to the different models.

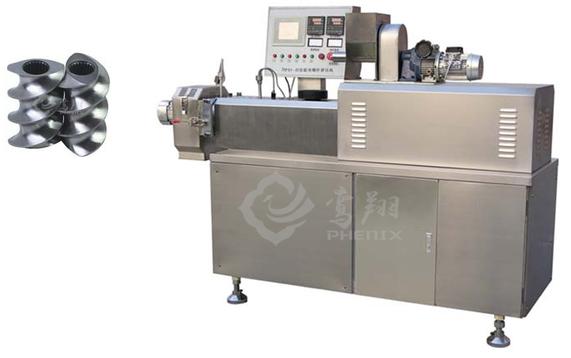

◆. Lab twin-screw food extruder PX30 is special for universities, research institutes and large and medium-sized enterprises engaged in various extrusions, extruded maturation, extruded variability study omnipotent models. It has gone through four generations of improvements to Powerful, easy to operate and simply of parameters adjustment, test data accurate, easy maintenance .
2. Raw materials: adapt to cereals; potato starch, protein, chemicals, plastics, rubber and other raw materials are vastly different for a variety of experiments.
3. Products: Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by
adjusting the mould in the extruder.
4. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries.
5. Machines Materials: All the machines are made by stainless steel.
6. Technical Parameters
| Power | 5.5KW | Second series L/D | 9.3 15 20.6 | Pressure | 0~30MPa |
| Engine speed-control | Frequency speed-control | Heating way | electric | Pressure precision | 0.1MPa |
| Screw diameter | 30mm | Cooling | Water | No. of measuring pressure | 3 |
| Screw central distance | 26mm | Temperature scope | 20℃-300℃ | cooling way | Water |
| Speed range | 0-500rpm | Temperature precision | ±1.0℃ | Filling intake | 3 |
| Screw | Building block-combined type | No. of measuring temperature point | 4 | Water intake | 3 |
| First series L/D | 11.6 12.7 23 | Output | 10-25KG/H | Percent of water | 6%-7% |
