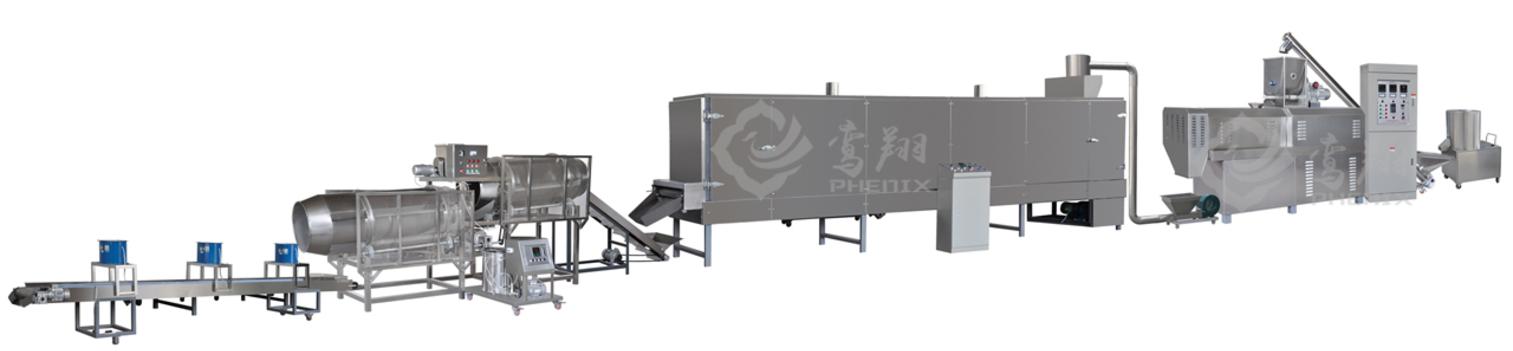

Pet Food Production Line

Want to know more about pet food production business?

1. Description

Pet food machine is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is high and new technical program as to catch the developing pet food market. Pet food line mainly use maize, fish powder, meat powder and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed pet food.
This line is fully automatic, high capacity and with different of shapes. It can produce such as cat food, dog food, fish food, bird food and so on.

2. Raw materials: adopts  soya flour, corn flour, fish meal etc. as raw materials

3. Products: Variety shapes are available by adjusting the die in the extruder

4. Capacity: 150kg/h, 240kg/h, 500kg/h, 1ton/h, 2ton/h

5. Flow chart: Mixing system---Extrusion system---- -Drying system----Flavoring system---Packing system

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

7. Machines Materials:All the machines are made by stainless steel

8. Technical Parameters

Model         Installed power         Real power            Output                             Dimension
PX65                81.5kw                     53kw                  100-150kg/h              21000x1200x2200mm
PX70                115kw                      76kw                  200-240kg/h              23000x1500x2200mm
PX85                181kw                      117kw               400-500kg/h               28000x3500x4300mm
PX95                135kw                      100kw                 1000kg/h                   30000x3500x4300mm
PX115              165kw                      115kw                 2000kg/h                   30000x3500x4300mm
