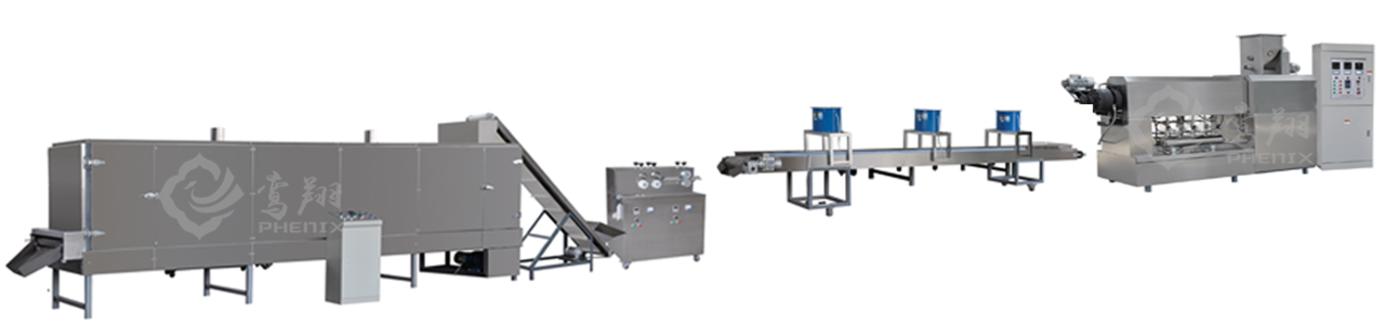

Pet Treats Production Line

1. Description:

Pet treats food takes starch as raw materials with scientific configuration and was extruded from co-extruder, it can be made into many kind of shapes such as stick, bone, bi-color, bi-flavor, etc. This kind of food not only provide protein, fat, vitamin, nutrition for dogs, but also satisfy the dog nature hobby. It has following features: strong teeth, clean mouth and teeth.

a. Raw Materials: adopts corn starch, potato starch as raw materials

b. Products: twist, double colors, core-filling and so on.

c. Capacity: 100kg/h

d. Flow chart:

Mixing system---Extrusion system---Cooling system---Cutting system---Drying system--- Packing system

e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

f. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

g. Technical Parameters:

Model       Installed power       Real power           Output                       Dimension

PX100           90kw                        63kw              80-120kg/h             20000x1200x2000mm
