1. Description:

Corn snacks extruder adopts corn, rice, wheat, oat, barley etc as ingredients to make puffs snacks. This line will finish mixing, extruding, drying flavoring, packing in one-pass operation automatically. It can produce different shapes of puffed snacks: Round, triangle, square, stars, and flower etc.

2. Raw materials: Adopts corn, rice, wheat, oat, barley etc as ingredients

3. Products: Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder

4. Capacity: 150kg/h, 240kg/h, 500kg/h

5.Flow chart: Mixing system---Extrusion system---- -Drying system----Flavoring system---Packing system

6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

7. Machines Materials: Stainless Steel #304, thickness:1.2mm;Main Motor: Siemens China brand ;Main Electric elements: Siemens or CHNT brand;Inverter: Delta brand

8. Technical Parameters

Model           Installed power           Real power          Output                        Dimension

PX65                81.5kw                          53kw            100-150kg/h            21000x1200x2200mm

PX70                115kw                           76kw            200-240kg/h            23000x1500x2200mm

PX85                181kw                          117kw           400-500kg/h            28000x3500x4300mm

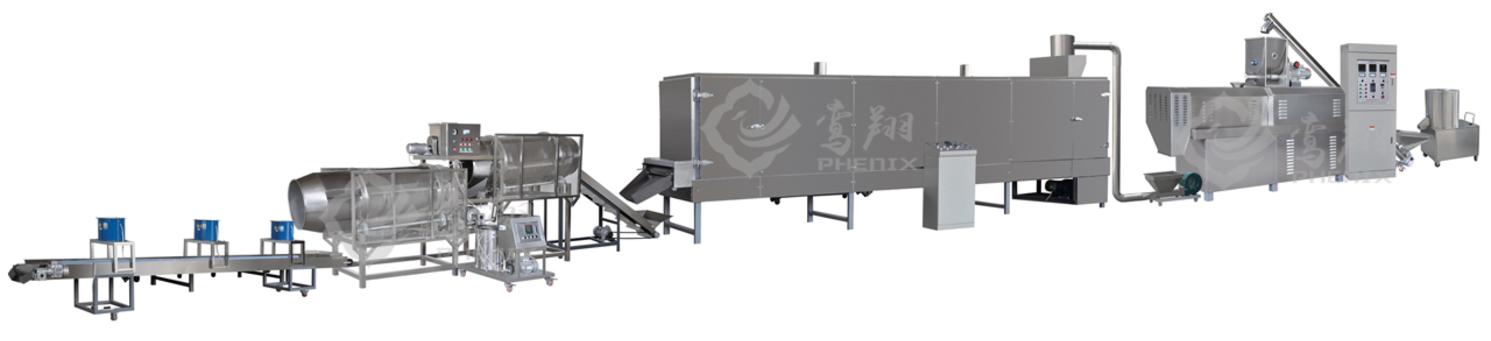

Puffed Snacks Production Line

Want to know more about puffed snacks production business?
