◆PLC computer control system. PLC from Japan or Germany
◆Big touch From Tai wan . Easy to operate and control the machine
◆High precise positioning with servo film transporting system .Servo motor from Germany Siemens to ensure stable.
◆Warn protection function
◆The machine will automatically complete all packaging processes from measuring, feeding, filling,
printing ,finished bag .
◆The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements. Punching hole bag & connect 5-12bags and so on .
◆Simple construct, reliable circulator, easy maintenance
◆The machine adopts the screw pole putting material, adopting servo code and the microcomputer technology control is the main. Simultaneous control, sensitive action. Low noise, outstanding, reliable measure, speed quickly. High precision. Another it can display the measure counter.
Suitable to powder packing .flour,milk,powder,coffee powder,feed,fine powder etc.
2. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries
3. Technical Parameters
|Packing speed||5-80 bag/min|
|Bag size || (Width)60-200mm (Length)50-300mm|
|Bag making mode ||Pillow-type bag, standing bag, punch hold and connect|
|Range of measuring||150-1300ml|
|The maximum width of packing film|| 420mm|
|Thickness of film||0.04-0.08mm|
|Air consumption||200L/min 0.7×105Pa|
|Main power/voltage||2.2KW/220V 50-60Hz|
|The weight of switchboard||400kg|

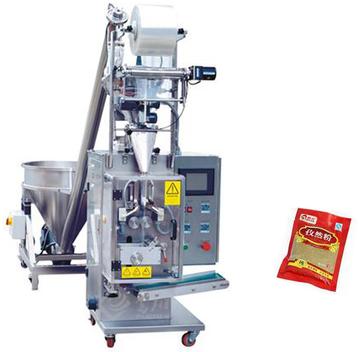

PX F-398 Powder Packing Machine
