1. Description:

special equipment for modified starch
With corn starch and potato starch as raw materials, After pre-gelatinization by extrusion, a variety of modified starch products are produced.
◆The main motor, feeding and rotary cutting adopt variable frequency speed control, strong power and operation.
◆ The extrusion system is equipped with six sets of temperature control and automatic cooling devices, and the temperature control is accurate and reliable.
◆The screws are made of the alloy steel and special craft,durable usage,high pressure,the screw life is longer.
◆ Temperature control heating/cooling two-way control, Temperature control is more accurate.
◆The screws are made of the alloy steel and special craft,durable usage,high pressure,the screw life is longer.


2. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries

3. Machines Materials:

Machine Material: Stainless Steel #304, thickness:1.2mm

Main Motor: Siemens China brand

Main Electric elements: Siemens or CHNT brand

Inverter: Delta brand

8. Technical Parameters

Model          Installed power         Real power         Output                      Dimension

PX130                 75kw                         60kw             300-600kg/h            3000x1200x1700mm

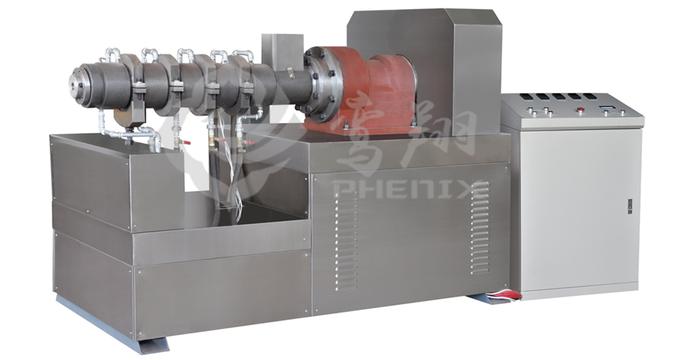

 PX130 Modified Starch Extruder
