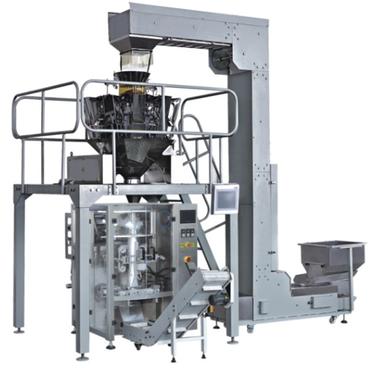

PX520 Full-automatic Vertical Packing Line

Want to know more about baby food production business?

phenixextruder@outlook.com

+86  187-6410-1817

1. Description:
◆PLC control with touch panel-step by step instruction.
◆Equipped with servo winding system,pneumatic control system.
◆The maximize to improve the whole machine precision, reliability and stability.
◆Use intellectual temperature controller, the high temperature control to ensure neat sealing.
◆The perfect automatic alarm safety protection, little waste. the machine will automatically complete all packaging processes

from feeding, measuring, filling, Printing ,finished bag.
The machine can combine with weighing system of multi-head weigher, measuring cups device, manual feeding conveyor,

spiral dosing machine.
It’s suitable to use in packing the high accuracy and easy fragile material , such as : Potato Chips ,crispy rice , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .

2. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

3. Technical Parameters


 Items
 Content
Packing speed
10-80 bags/min
Bag size
(L)80-350mm (W)90-250mm
Bag making mode
Pillow-type bag, standing bag, punching device
Range of measuring
2000ml
The max width of packing film
520mm
Air consumption
0.2m3/Min  0.6Pa
Main power/voltage
5.0KW/220V
Dimension
(L)1940×(W)1220×(H)1800mm
The weight of switchboard
650kg
