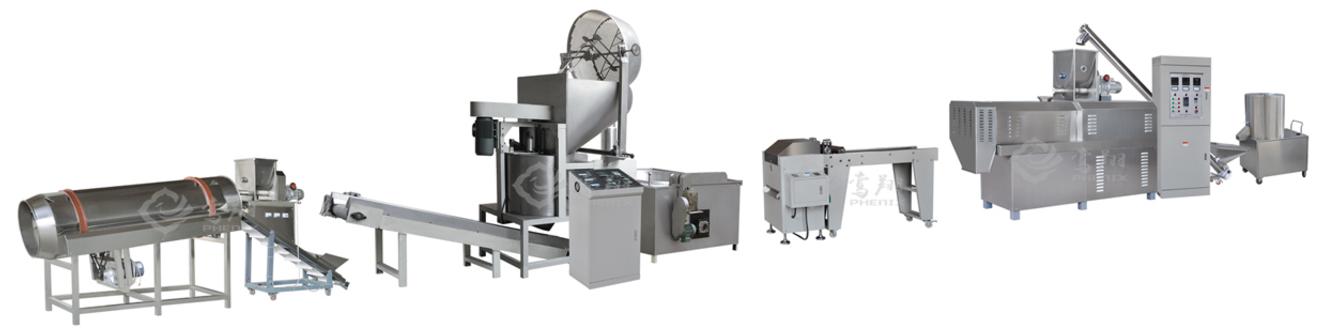

Salad Chips/Casserole Production Line

1. Description:
Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. as crust,salad strip,salad chip,pizza etc.,by a double screw extruder accompanied with moulds of distinct sizes and shapes. The products have fine-looking appearances and livelike shapes with crispy tastes.By one extruder only changing different moulds is needed to fabricate products of many shapes so as to greatly reduce production cost and to meet the market requirement with a minimum cost. The process line features a high automation with easy operation.The puffed products may directly be fried for saving drying cost so as to get benefit quickly with less investment.
2. Raw materials: adopts corn, rice, wheat, oat, barley etc as ingredients

3. Capacity: 150kg/h, 240kg/h

4. Flow chart: Mixing system---Extrusion system----Shaping ---Frying system----Flavoring system---Packing system

5. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

6. Machines Materials:
Machine Material: Stainless Steel #304, thickness:1.2mm
Main Motor: Siemens China brand
Main Electric elements: Siemens or CHNT brand
Inverter: Delta brand


7. Technical Parameters
Model     Installed power    Real power    Output     Dimension
PX65    81.5kw    53kw    100-150kg/h    21000x1200x2200mm
PX70    115kw    76kw    200-240kg/h    23000x1500x2200mm
​​
