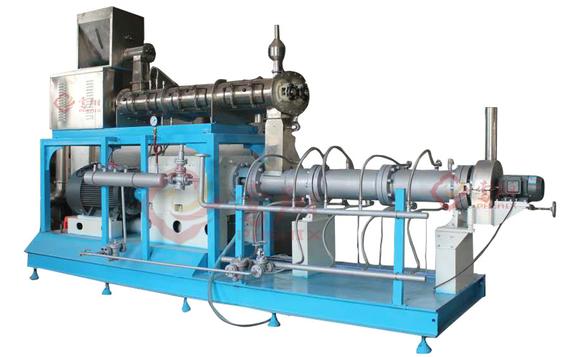

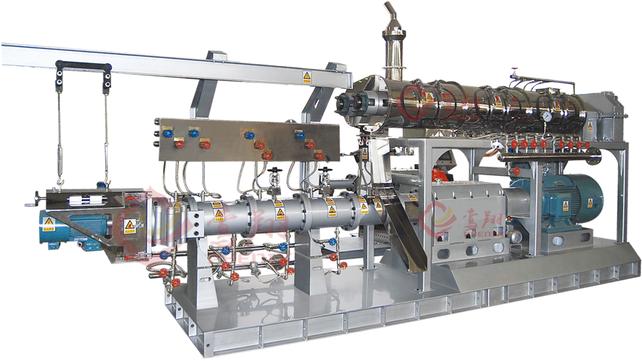

Steam Twin Screw Extruder

1. Description:

◆The main extruder adopts frequency speed controlling with high automation and stable per-formation. The extruder is using steam as heating resource. You can produce high quality feed.

 ◆The screws are made of the alloy steel and special craft,durable usage,high pressure,the screw life is longer.Adopting the building block structure and combining willingly according to the different demand.

 ◆The forced lubrication system,so that it can guarantee the equipment transmission life is longer.

 ◆Auto-temperature control system, make the temperature controlling more direct viewing and the parameter more precise.

 ◆Self-cleaning ,when stopping ,it can be cleaned without desassembling.

 ◆According to different screw design rate to full different technology request.

Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. "Low cost, high profits" is the suitable generalization of pet/dog/cat food & fish feed business line, And by changing the shapes of moulds, You can produce different shapes of pet feed. Such as heart, bone, fish, triangle etc. shapes. Also, You can produce different size of fish feed pellet.

2. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

3. Technical Parameters

Model                 Installed power               Real power                  Output                               Dimension

PX95                         108kw                          90-95kw                  2000-3000kg/h               3900x2500x5000mm

PX120                       160kw                         110-120kw              3000-4000kg/h                5000x6000x8000mm
